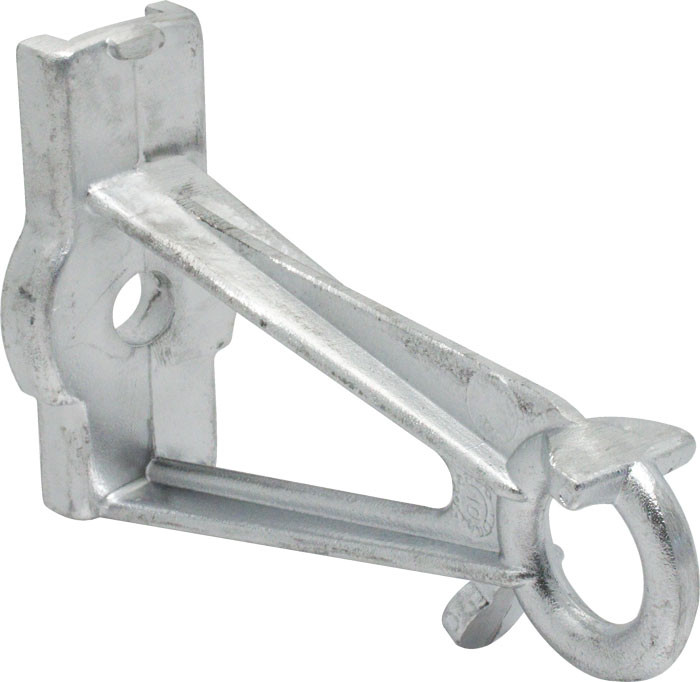

Telenco® CS 1500 suspension bracket is an aluminum alloy hardware offering high mechanical performances. CS 15000 installs on all type of poles: drilled or not, steel, wooden or concrete-made. For drilled poles, installation is to realize with a bolt 14/16mm. The total length of the bolt must be at least equal with the pole's diameter + 20mm. For non-drilled poles, the bracket is to install with two pole bands 20mm secured with compatible buckles. We recommend you to use SB207 pole band together with B20 buckles.
Minimum tensile strength (with a 33° angle): 10 000N Dimensions: 170 x 80mmEye diameter: 38mm
