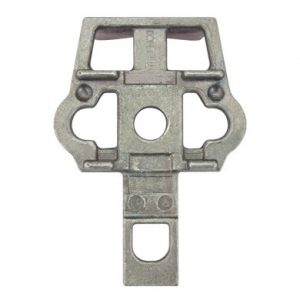

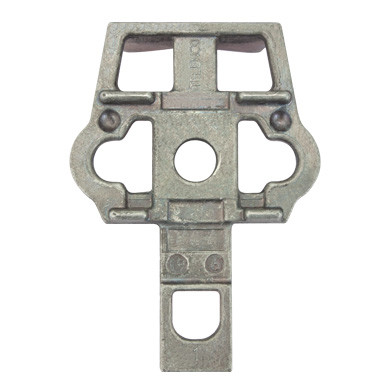

Telenco UPB NG

The Telenco® UPB NG is made of aluminum alloy and offers high mechanical strength. This new version is compatible with Telenco® cross-arms 5/14 and 5/15. Equipped with anti-rotation lugs , Telenco® UPB NG requires one single bolt for its installation and for supporting a cross-arm.

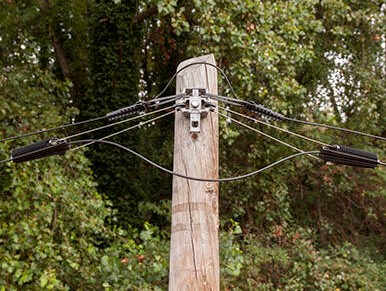

Its unique and petented design has been developed to offer an universal pole bracket meeting all the installation needs on wooden, steel or concrete poles.
This pole bracket enables :

• Cable unrolling on pulleys
• Stay wire
• Cross-arm fastening
• Customer connection
• Cable dead-ending
• Double anchoring
• Angled passageways
• Triple anchoring

Our recommendations for installation:

• On non-drillable poles (concrete, steel…): two pole bands equipped with buckles + a bolt 1/12 to fasten the cross-arm
• On drillable poles (wooden): a pole head bolt 1/06
• On pre-drilled poles (steel, concrete,…): a pole head bolt 1/06
• At the opposite side of a mounted pole hardware: a nut HM14
