Specifications:
H.450mm x D.230mm
96 splices (4x24 splices)
4 trays (A Type)

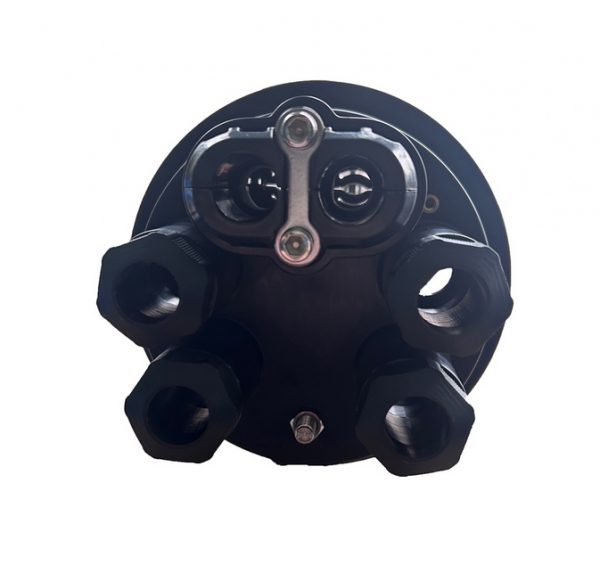

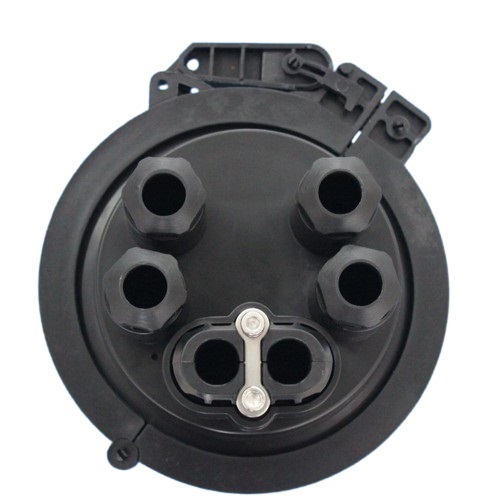

1 oval port for 1 loop cable with max dia 17,5mm + 4 round ports,
each port for 1 cable with max dia 17.5mm or drop cable.
Features:
May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack.
Installation and reentry with a minimum of tools.
Mechanical sealing way,re-enterable and reusable.
All hardware are captived.
Closure can be flash tested.
ROHS compliance.
Application:
Watertight, Underground, Aerial, Vault and Wall Mountable.
