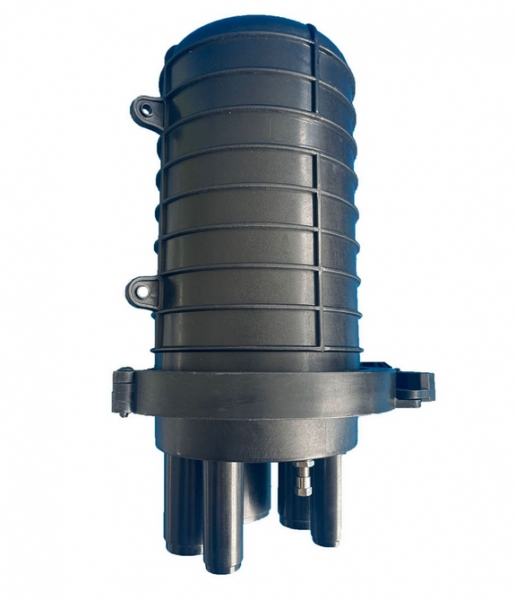

96F Fiber Optic Splice Closure

H.345mm x D.230mm
96F (4x24 splices)

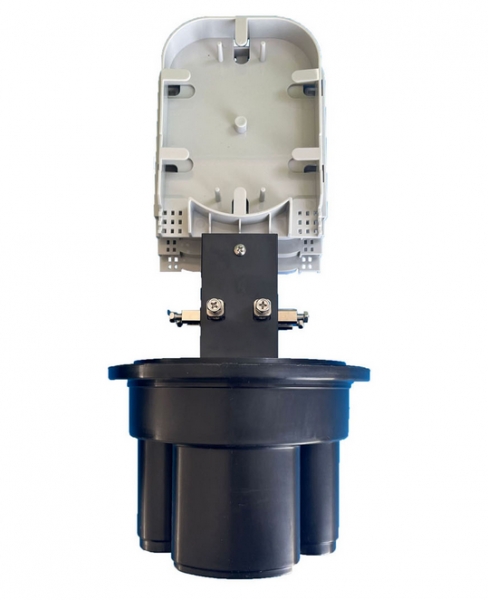

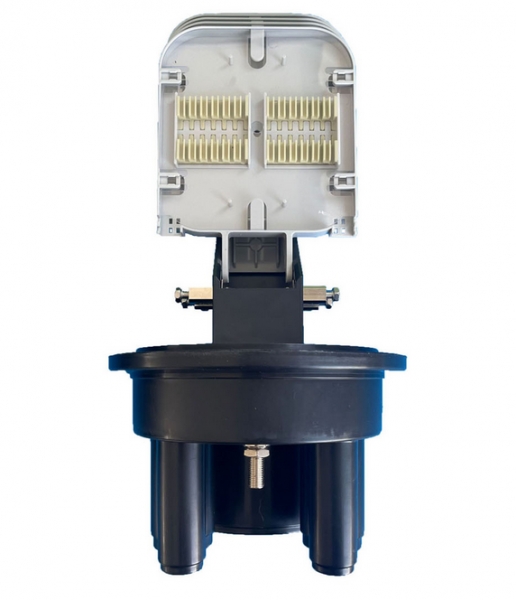

4 trays

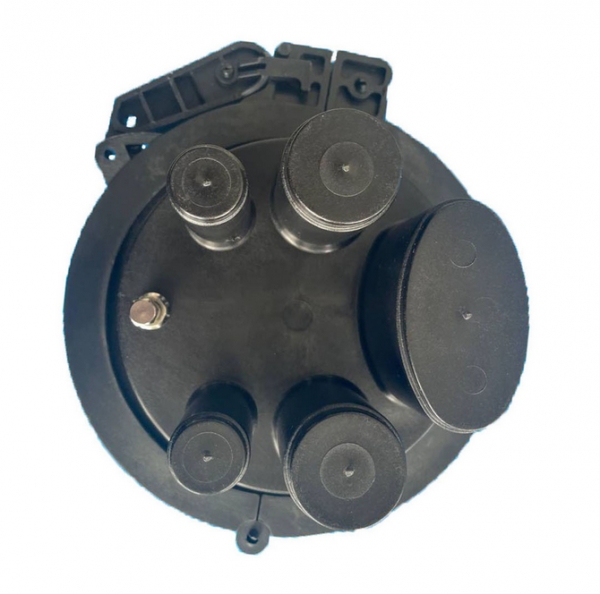

1 oval port + 4 round ports:
1 oval port for 1 looped cable with max 22 mm
2 round ports, each port for 1 cable with max 17.5 mm
2 round ports, each port for 1 cable with max 30 mm or drop cable

Datasheet
