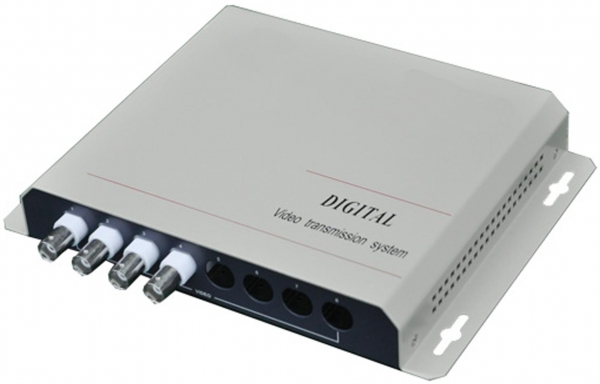

    4 Channel Digital Video Converter

    Video
    Large ones and direction of the four positive
    Video input / output impedance 75Ω unbalanced interface,
    Video input / output voltage typical peak - 1Vpp, the largest 1.5Vpp
    Video Sampling 15MHZ
    Differential Gain <1%
    Differential Phase <0.6 °
    Signal to Noise Ratio 67dB (weighted)
    Digital video coding style 8/10bit

    Data
    Large ones and direction of the 1-8 or 1-4 bidirectional bidirectional RS422 RS232/RS485
    Bandwidth of 180Kbps
    Standard RS-232/RS-422/RS-485
    BER <10-9
    Operating temperature -30 ℃ ~ +70 ℃
    Storage Temperature -40 ℃ ~ +85 ℃
    Humidity 0% to 95%, no condensation
    Optical Interface (OPTTICAL) FC / ST
    Image Interface (VIDEO) BNC (gold plated SMIC)
    Data interface (DATA) 3.96 terminal or RJ45 patch cords
    Power Supply DC 6.5V or AC110V/220V INPUT
