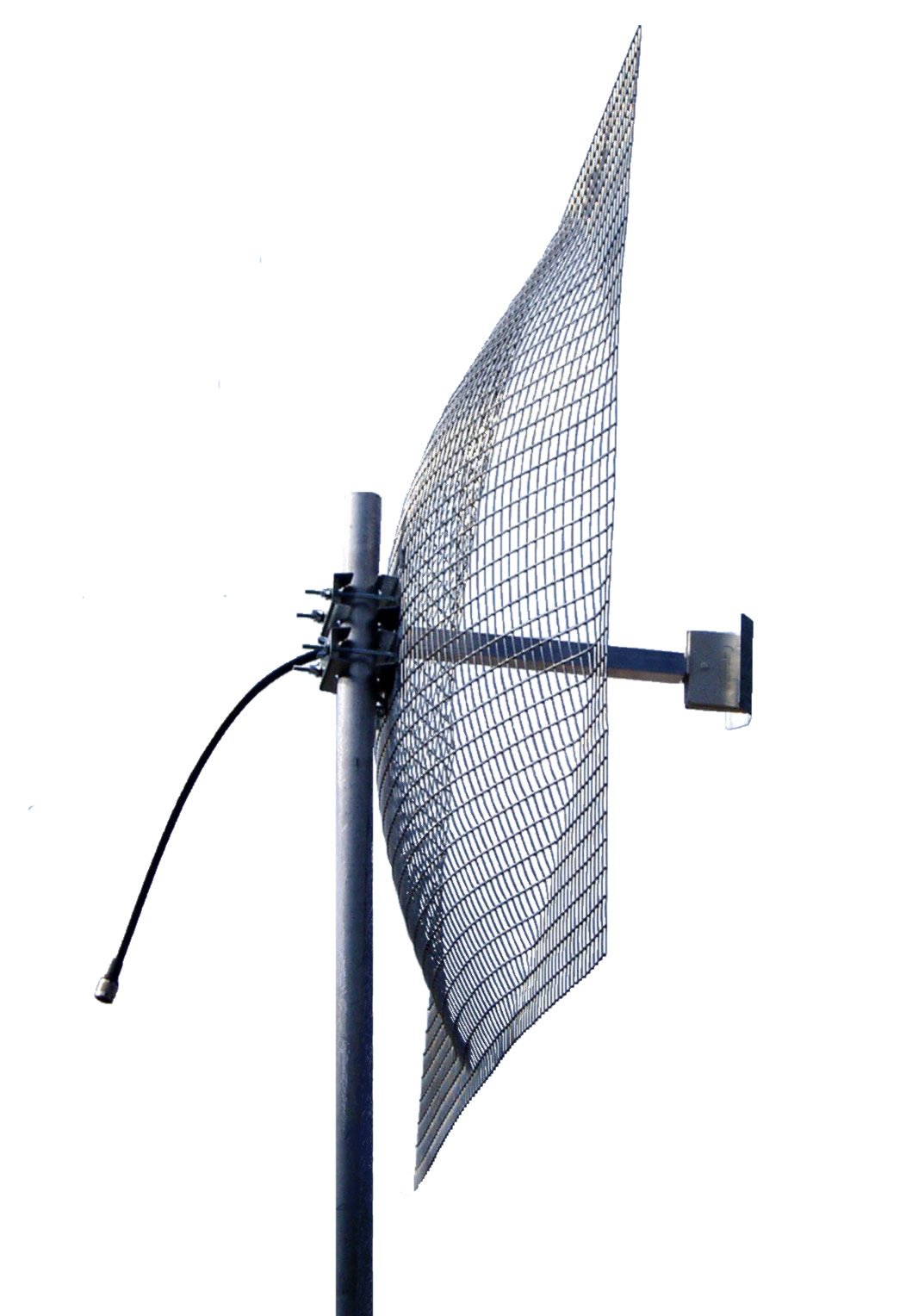

Stella SD24 2.4GHz Parabolic antenna

The SD24 is a high gain point to point antenna designed for use in high
density RF environments. The excellent radiation characteristics are the distinguishing features
of these well priced antennas. This family of grid antennas is designed for high wind harsh environments.

Electrical Specification:
Gain - 22.5dBi
Bandwidth - 2.4-2.485 GHz
VSWR - 1.4 : 1
Front to Back Ratio - 32dB
Cross Polar Ratio - 28dB
Polarization - Horizontal / Vertical
Power Rating - 50W
Impedance - 50 ohms
Termination - N-Male pigtail

Mechanical Specifications:
Length - 76cm
Width - 76cm
Weight - 3.2kg
Windage (at 216kmph) - 476 N
Mechanical Tilt - 0-25 degrees
Mounting Pipe - 5cm pipe

Materials:
Radiating Element - Copper Dipole
Radome (feed) - ABS Black
Clamps - HDG steel + galvanised steel bolts
