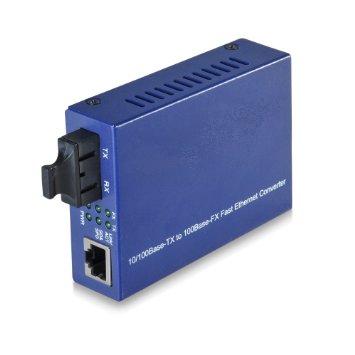

MM 10/100 1310nm Dual Fiber SC - 2km

Description:
10/100Mbps Fast Ethernet Converter. The Converter mediates between a
10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large, higher
speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend
the conventional 10M Ethernet or 100M Fast Ethernet to 20km-120km via the fast Ethernet Fiber-optical
Line. It is high-performance, cost effective and flexible solutions for a wide range of applications in the
field of LAN campus network.
Features:
LFPT (Link Fault Pass Through) Function optional
Provide one fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/FX standard
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Indication light:FEF,SPD,FXL,TXL,PWR,FDX
Easy-to-view LED indicators provides status to easily monitor network activity
